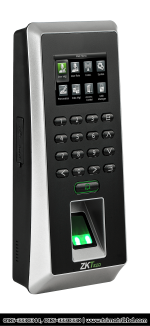

Zkteco F21 Lite

F21 Lite is a time attendance and access control terminal with advanced BioID technology. It possesses outstandingly high identification rate towards dry, wet and rough finger, Anti-Highlight and Side-Beams minimize the interference occurred during fingerprint verification and Infrared technology enables the device to function automatically when fingerprints are detected, reducing unnecessary electrical usage thus saving energy.

In addition, with the brand new ZMM220 hardware platform, its clock rate can attain 1.2GHZ. Such speedy hardware platform and fingerprint
algorithm greatly enhance the speed of fingerprint verification.

Call Us:

01785-777722, 0185-3330338

Office Locations: Uttara | Malibagh

Description

Zkteco F21 Lite

Parameter

Display2.4-inch TFT LCD Color Screen
Fingerprint Capacity3000
Card Capacity5000(Optional) ID or mifare card
Transaction Capacity100,000
SensorBioID Sensor
Algorithm VersionZKFinger VX10.0
CommunicationRS232/485, TCP/IP, USB-host
Access Control Interface3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Wiegand SignalInput, Output,SRB
Aux. Input1ea for linkage function
FunctionsDST,Automatic Status Switch, Anti-passback,Scheduled-Bell,Printer(Optional)
Power Supply12V DC,3A
Operating Temperature0 °C- 45 °C
Operating Humidity20%-80%
SDK and softwareStandalone SDK, ZKAccess3.5 software
Zkteco F21 Lite
Zkteco F21 Lite
