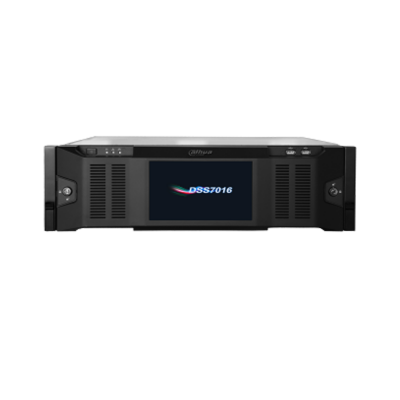

DAHUA DSS7016 General Surveillance Management Center

DAHUA DSS7016 Bangladesh

General Surveillance Management Center
System Stability
> Embedded Linux System, C/S Architecture
> Support 7*24 stable operation
> Support distribute and cascade deployment
> Support hot standby for master server
> Support N+M hot standby for slave server
High Compatibility
> All Dahua’s devices included: network camera, network speed dome, NVR, DVR, MDVR, ITC, Access control, VDP, Alarm Controller, etc.
> Connect third-party devices via standard ONVIF protocol
> Offer the platform SDK for third-party platform or mobile phone do further development
High Flexibility and Scability
> Up to 20 slave servers can be managed per master server
> Support up to 5-level cascade
> Support unlimited accounts management, 200 online users and 100 roles
> Support 500 IP devices and 2000 channels
> Support 500 devices to auto-Register
> Support 100 Onvif devices
> Support 256 doors
Powerful Center Storage
> Up to 200TB per server
> Backup record to center storage
> Up to 15 hard disk and ISCSI expand storage
> Support HDD group modes, different HDD group can be assigned to different camera
> Support Raid 0/1/5/6/10
Main ProcessorIntel Core i5, 64 bits 4 Core Processor
Operating SystemEmbedded Linux
Memory8GB DDR3
MotherboardEmbedded Board (support 7×24 operation)
CaseHot-dipped galvanized sheet steel (1.2mm), High-precise

aluminum alloy slide, Patented pull-out rack design

Power SupplySingle Power Supply
Network Port4 RJ-45 Ports10/100/1000Mbps )
Ethernet Port4 Ethernet Ports Joint Working or 4 Independent

1000Mbps Ethernet Ports

USBFront panel: 2× USB 2.0, Rear panel: 2 × USB 2.0
HDMI2 HDMI ( one as network config, another as spare)
VGA1 VGA, as network config
Video Management
Number of Connected Cameras Per Server500 IP devices and 2000 channels
Onvif Device100
Auto-Register500 devices, 2000channels
Mobile DVR Devices200IP, 800 channels
Clients Per System200 Online Users
Numbers of UsersUnlimited
Numbers of Roles100
Bandwidth of Video Input per Server700 Mbps
Bandwidth of Video Output per Server700 Mbps
Alarm Inputs80 /s ( Average ), 200/s (Peek)
HDD InstallationBuilt-in 1×1T HDD disk (3.5″) for system

Support 15HDD disks (3.5″) for Video or Picture storage

(Max support 4T HDD)

StorageUp to 200TB per server
HDD ModeSingle, Raid 0/1/5/6/10
Bandwidth of Video

Storage per Server

700 Mbps
Front CoverSupport Hot-swap

7-inch HD LCD (1920 × 1080 , 1280 × 1024, 1024 × 768)

Power10W ~ 200W(with HDD)
Working Environment


0℃ ~ 50℃
Working Environment Humidity5% ~ 90% (non-condensation)
Storage Environment Temperature-20℃ ~ ﹢70℃
Storage Environment Humidity5% ~ 90% (non-condensation)
Working Altitude-60m ~ 3000m

(Without Package)

20 Kg
Dimension3U, 526mm×485mm×135mm
