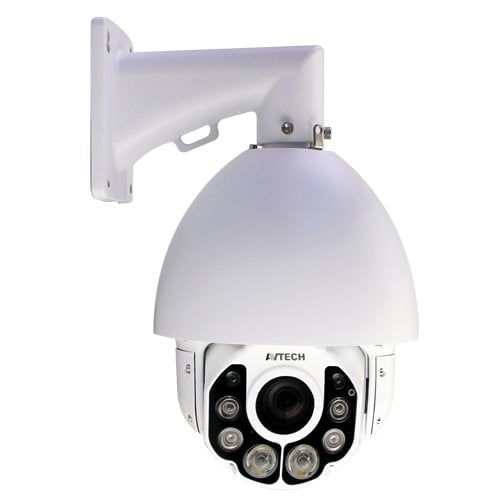

Avtech AVZ592 Tribrid 2MP 20X Speed Dome Camera

AVTECH AVZ592 Bangladesh

  • Tribrid video output of IP, TVI and AHD to fulfill different customers’ requirements
  • Zoom lens of f4.7 ~ 94mm with 20x optical zoom and auto focus, suitable for various monitoring environments
  • ONVIF standard supported to simplify system integration
  • MicroSD card support (up to 64GB) for video storage
  • WDR to increase image recognizability in overexposure and dark areas
Call Us:

01785-777722, 01711-461346

Office Locations: Uttara | Malibagh

Description

Avtech AVZ592 Bangladesh

  • Resolution: 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
  • Image Sensor: 1/2.8″ Sony CMOS image sensor
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.1 Lux / F1.6(Wide)~F3.5(Tele), 0 Lux (IR LED ON)
  • IR Illuminators: Yes
  • IR Illuminator Range: Default: Up to 200 meters / IR Turbo mode: More than 200 meters
  • Focal Length: f4.7 ~ 94mm / F1.6 (Wide) ~ 3.5(Tele)
  • Zoom: 20x optical zoom & Digital PTZ
  • Pan Range: 360° endless
  • Tilt Range: f4.7 ~ 94mm / F1.6 (Wide) ~ 3.5(Tele)
  • Number of Presets: Up to 256 preset points
  • Iris: Auto Iris
  • Focus: Auto
  • Field of View: 1X: 60.8° (Horizontal) / 35.3° (Vertical) / 68.3° (Diagonal); 20X: 3.4° (Horizontal) / 1.9° (Vertical) / 3.8° (Diagonal)
  • Compression Styles: H.264 & MJPEG
  • Frame Rate: 30 FPS
  • Image Settings: Wide Dynamic Range (WDR), White Balance, Auto Gain Control, Sharpness, Auto tracking, Sequence groups
  • Privacy Mask: No
  • Built-in Microphone: No
  • Audio Capabilities: Mono line in/line out to support external microphone & speaker
  • Alarm/Event Management: Auto tracking, Motion Detection, notification via FTP / Email / SMS
  • ONVIF: Yes
  • Security: Multiple user access levels with password, IP address filtering, Digest authentication
  • Users: 10
  • On-board Storage: MicroSD card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weatherproof
  • Dimensions: Please see specs at bottom of data sheet
  • Weight: 6.9 kg (15.2 lb)
  • Operating Temperature: -25℃ ~ 50℃ (-13F ~ 122F)
  • Operating Humidity: N/A
  • Power/Consumption AC 24V; DC19V; PoE / PoE 31.3W; DC Adapter: 25W
