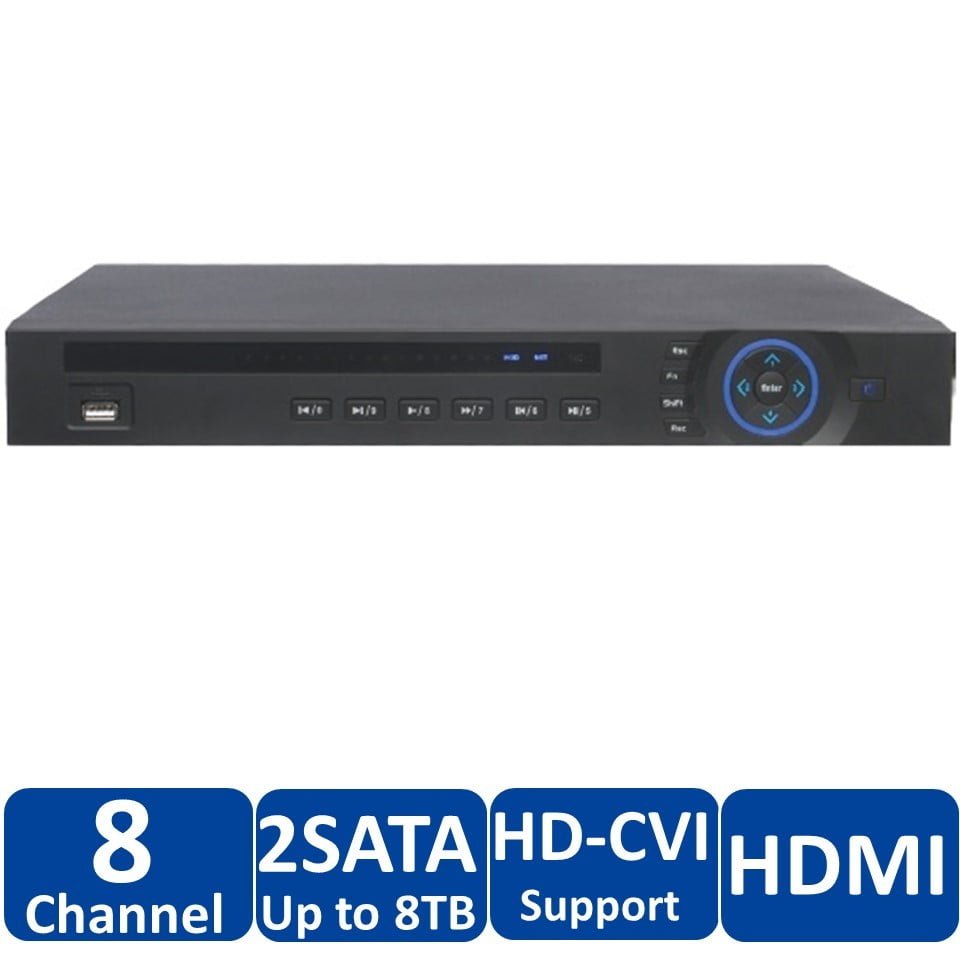

Dahua DH-HCVR5208A-S2

  • Support HDCVI/Analog/IP Video input
  • H.264 dual-stream video compression
  • HCVR5204/5208/5216A-S2: All channel 720P realtime or 1080P non-realtime recording
  • HDMI/VGA simultaneous video output
  • 4/8/16 channel synchronous realtime playback, GRID interface & smart search
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
  • ONVIF Version 2.4 conformance
  • Support 2 SATA HDDs up to 8TB, 2 USB2.0
  • 3D intelligent positioning with Dahua PTZ dome camera
  • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Description

Dahua DH-HCVR5208A-S2 Bangladesh

ModelDH-HCVR5204A-S2DH-HCVR5208A-S2DH-HCVR5216A-S2
System
Main ProcessorEmbedded processor
Operating SystemEmbedded LINUX
Video
Input4 channel, BNC8 channel, BNC16 channel, BNC
StandardAnalogNTSC/PAL
HDCVI1080P/720P HDCVI Camera
IPSupport 2ch 1080P/720P IP Camera
Audio
Input4 channel, RCA
Output1 channel, RCA
Two-way TalkReuse audio input/output channel 1
Display
Interface1 HDMI, 1 VGA
Resolution1920×1080, 1280×1024, 1280×720, 1024×768
Display Split1/41/4/8/91/4/8/9/16
Privacy Masking4 rectangular zones (each camera)
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording Dahua DH-HCVR5208A-S2 Bangladesh
Recording
Video/Audio CompressionH.264/G.711
Record RateMain Stream:1080P(1~15fps)/720P/960H/D1 (1~25/30fps)
Extra StreamCIF/QCIF(1~25/30fps), D1
Bit Rate96~4096Kb/s
Record ModeManual, Schedule(Regular(Continuous), MD), Stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger EventsRecording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video DetectionMotion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input8 channel8 channel16 channel
Relay Output3 channel
Playback & Backup
Sync Playback1/41/4/91/4/9/16
Search ModeTime/Date, MD & Exact search (accurate to second)
Playback FunctionsPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom Dahua DH-HCVR5208A-S2 Bangladesh
Backup ModeUSB Device/Internal SATA burner/Network
Network
EthernetRJ-45 port (10/100M)RJ-45 port (10/100M/1000M)
Network FunctionsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access128 users
Smart PhoneiPhone, iPad, Android, Windows Phone
Storage
Internal HDD2 SATA ports, up to 8TB
Auxiliary Interface
USB Interface2 ports(1 Rear), USB2.0
RS4851 port, For PTZ control
General
Power SupplyDC12V/4ADC12V/5A
Power Consumption15W(without HDD)
Working Environment-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H)1U, 375mm×285mm×55mm
Weight2.35KG(without HDD)

Dahua DH-HCVR5208A-S2 Bangladesh
