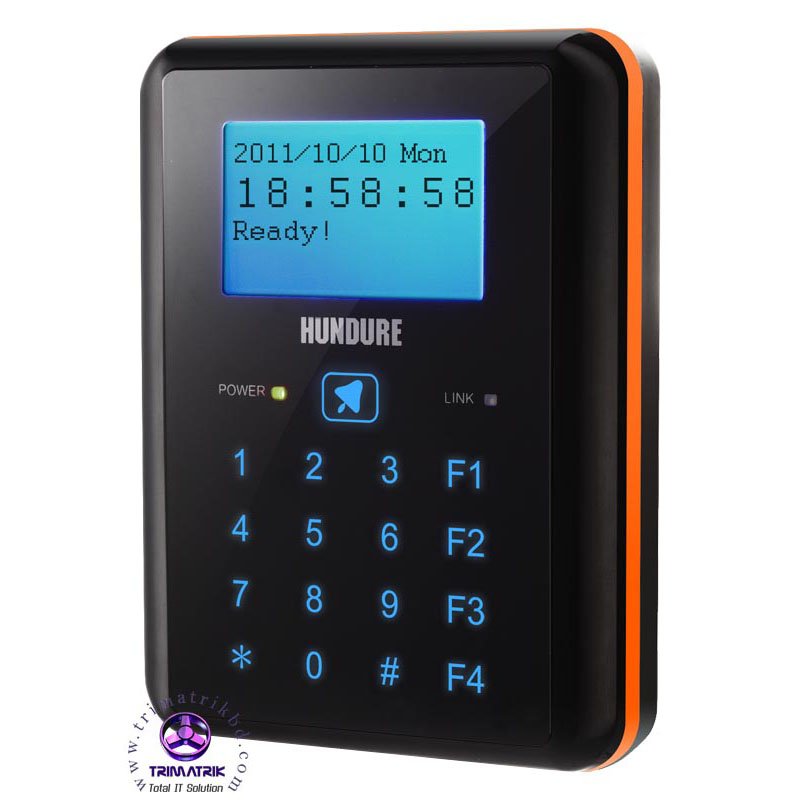

Hundure RAC-960 Access Control & Time Attendance

Bell key design. Suit for various location.
Casing tamper proof detection and door tampers alarm.
Support swipe card and swipe card with pin codes enter modes.
The memory of the standard model is 18,000 cardholders (max) and 18,000 events.
Another model with 170,000 events storage is available for optional purchase.
Unique ID or Block read format supported. (RAC-960PM)
Slim, stylish design with waterproof sensitive touch keypad with blue backlight.
Built-in RS-485 & TCP / IP communication interface to PC.
Blacklist and Duress card/code setting. When door opened in the emergency, the controller will send signal to control center at the same time for tracing and rescue.
Programmable disarm code and able set maximum attempts to trigger re-swipe card alarm. The controller time-out function will avoid intrusion in and has self security.
Provide 32 working shifts and 32 siren output. LCD will display current shift and activate alarm. Provide 100 holiday schedules per year.
Able to connect external slave reader, And support anti-passback to every single door.
Provide 128 time zones and time schedules, 8 time conditional unlock door schedules. (per week)
Display name on the LCD screen after swiped card. Function keys of access control and shifts which are convenient to personnel to generate time attendance reports.
On-board lithium battery ensures data storage can reach up to 1 year upon power outage.
Made in Taiwan
Warranty: One Year

Description

Model No.	RAC-960PE	RAC-960PM
Read Format	EM (125 KHz )	Mifare-1 (13.56MHz )
Read Range	8-10 (max)	3-5 (max )
Slave Reader	T2 or Wiegand ( 1 Set )
Input Ports	3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1)
Output Port (Built-in)	Relay x 1 (Door Lock or Bell )
Output Port (External)	O.C. Output x 2( Door Lock / Alarm or Siren , external ACU-30 )
Cardholders	18,000 (max)
Events	18,000
LED Indicator	Power / Comm.
LCD Display	128 x 64 Dot. Graphic Display with backlight
Keypad	17 Key (F1-F4, 0-9, ＊, ＃, Bell) (Sensitive Touch Keypad)
Real Time Clock	Yes
Beep Tone	Buzzer
Water-proof	IP X5
ID or IP Setting	Command setting by keypad
Power Input	DC 12V / 1A
Current Consumption	500mA. (max. excluding slave reader)
Comm. Interface	RS-485 / TCP/IP
Comm. Baudrate	RS-485：9,600/19,200 bps-N-8-1, TCP/IP：10/100 Mbps
Operating Temp.	0° C ~ 55° C / 32° F ~ 131° F
Relative Humidity	20% ~ 80%(Non-condensing)
Dimension	130mm(L) x 100mm(W) x 27mm(H)
Weight (Device)	340g
