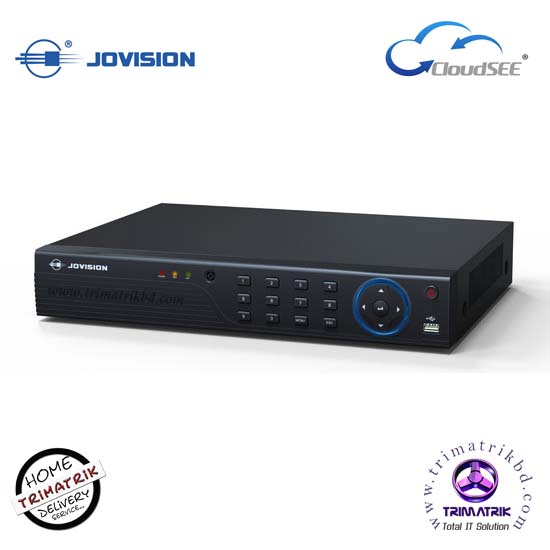

Jovision JVS-D6016-S3 16CH CloudSee Standalone DVR

The JVS-D6016-S3 DVR independently developed by Jovison Ltd, support cloudSee and dual-stream technology, adopting H.264 compression algorithm and Linux real-time operating system. Video output transmit via HDMI ports with features of excellent connection rate, good transmission effect, easy operation, etc. It is optimal products for network remote monitoring, integrated with various practical functions, such as audio and video playback, network transmission, and alarm management. It is widely used in school, factory, supermarket, bank, traffic, community, warehouse, water conservancy and other fields.

Jovision DVR Features:
1.All D1 Resolution.
2.CloudSEE technology,one-key remote and network plug & play.
3.H.264 Video compression technology.
4.Support audio compression to achieve real-time video monitoring function.
5.MP4 record file format.
6.Warranty: One Year

Description

Jovision JVS-D6016-S3 Bangladesh

  Model/Specification                        JVS-D6016-S3
Video&Audio  Video Input  16CH BNC
 Video Output  HDMI(1920*1080/1440*900/1280×1024/1024×768)
VGAÔľą1920*1080/1440*900/1280√ó1024/1024√ó768ÔľČ
CVBSÔľąPALÔľö720√ó576/NTSCÔľö720√ó480ÔľČ
 Audio Input  2CH RCA
 Audio Output  1CH RCA
 Video Compression  H.264
 Video Preview Resolution  16CH D1
 Recording Resolution  D1/CIF
¬†Video BitRate ¬†200kbpsÔĹě1200kbps
 Audio Compression  G.711
Storage  HDD Type  SATA Interface
¬†HDD Number ¬†2pcsÔľąup to 4T/pcsÔľČ
¬†File Format ¬†logÔľö*.txt/pictureÔľö*.bmp/recordÔľö*.mp4
 Log Number  2000
¬†USBÔľąbackupÔľČ ¬†Support U disk/Mobile HDD¬† FAT32 format
Record  Record Type  Manual,Scheduled,Alarm,Motion Detection
 Record Mode  Cyclic Covering/Stop Recording
 Playback Control  Play, Pause, Stop, Rewind, Fast play, Slow play, Digital zoom
 Search Mode  All/Channel/Record Type/Date(Alone or Combined query)
Network  Ethernet  10M/100M Adaptive
 3G wireless network card  Support
 Dual Stream  Support
 Max Remote viewing channel  24CH
¬†Protocol ¬†TCP/IPÔľĆDHCPÔľĆPPPoEÔľĆUDP
 WIFI Module  Support MT7601
 AutoDial  Support
 Client-end  Cloudsee/WebCC/Android/IOS
External  Network  1 RJ45 10M/100M adaptive Ethernet Interface
 USB Interface  2 USB 2.0 Interfaces
 Serial Interface  1 RS-485 interface
 Operation device  Mouse/Remote Control/Front Panel
 Remote Control  Startup/Shutdown
 Alarm In  4 Groups ,32CH,External Alarm Box Input
 Alarm Output  4 Groups ,32CH,External Alarm Box Output
Smart Phone  Mobile OS  Android/IOS
 Support Protocol  TCP/UDP
Features  Screen Layout  1/2/4/8/9/16 Screens
 Alarm notification  Buzzer/Alarm device/PTZ call, Send alarm to client-end/E-mail alarm
 Digital Zoom  Support
 USB Recovery  Support
 Voice Intercom  Support
 Night Vision Mode  Support
 Privacy Mask  Support
 Video Loss Alarm  Support
 Alarm Snapshot  Support
 Playback Layout  4 Screens
General ¬†Working Temperature ¬†-10‚ĄÉÔĹě+55‚ĄÉ
¬†Working Humidity ¬†10%ÔĹě90%
 Power Supply  DC12V
¬†Power ¬†‚ȶ15WÔľąHDD not includedÔľČ
 Language  Multi-Language
 Size(W×H×D)(mm)  295×45×235
¬†Weight(g) ¬†‚ȧ2000
