Description
| Model/Specification | JVS-H411 | |
| Camera | Image Sensor | 1/4″CMOS |
| Resolution | 1280×720 | |
| Pixel | 1.0MP | |
| Compression | H.264/JPEG | |
| Frame Rate | 25fps | |
| Bit Rate | 64Kbps～8Mbps | |
| Min.Illumination | 0Lux(IR ON) | |
| Lens | Lens Mount | M12 |
| Lens | 3.6mm | |
| View Angle | 71° | |
| Focus | Fixed | |
| Function | Privacy Mask | 4 Rectangle areas |
| Exposure Control | Auto | |
| Gain Control | Auto | |
| White Balance | Auto | |
| Day & Night | IR cut filter with auto switch， Support Color to Black | |
| Video Adjust | Supports contrast, brightness, saturation, sharpness adjustment | |
| Remote Operation | System、Stream、User、Network Management | |
| Motion Detection | Support | |
| Alarm | E-mail、Client | |
| Voice Intercom | Support | |
| Local Storage | 64G | |
| PTZ Control | Rotation Angel | Horizon:355° Vertical:120° |
| Preset | 127 | |
| Automatic Cruise | 1 line | |
| Horizontal Scan | 1 Line | |

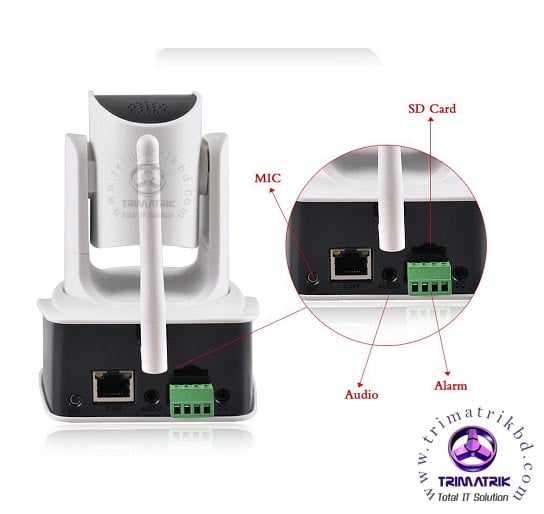

| Interface | Audio Input | 1个 Built-in MIC |
| Audio Output | 1 Built-in Speaker | |
| Net | 1 RJ45 10M/100M adaptive interface | |
| Alarm In | 1 CH | |
| Alarm Output | 1 CH | |
| TF slot | 1 standard TF card slot | |
| Reset | Restore to the factory settings | |
| Network | Ethernet | 10/100M Ethernet |
| Wireless | WIFI | |
| Dual Stream | Support | |
| Protocol | HTTP,TCP/IP,ICMP,UDP,SMTP,FTP,DHCP,DNS,PPPOE | |
| Transmission | Internal Cloudsee Protocol | |
| Browser | IE8+,Chrome18+,Firefox5.0+,Safari5.02+ | |
| Connection | 6 CH | |
| User Permission | Up to 13 users，Three level authority： Administrator、User、Visitor | |
| General | Infrared Lamp | 10 LED Lamps |
| IR distance（m） | 10m | |
| Best distance（m） | 8m | |
| Temperature | -20℃～55℃ | |
| Humidity | 10%～90% | |
| Power Supply | DC 5V | |
| Power | ≦3.2W | |
| Material | White ABS+PC | |
| Size(W×H×D)(mm) | 95×123×122 | |
| Weight(g) | 300 | |
| Installation | Wall/Ceil/Desk Mounting | |
1.Configure device through wired/wireless network.
2.Support horizontal and vertical PTZ; control viewing angle freely.
3.Support soundwave and wire configuration.
4.Built-in MIC and speaker,support two-way talk.
5.Support multiple RS433 alarming methods,magnetic door,bracelet etc.
6.Support High/Standard/Flow definition switch.
7.Support 64G local storage.
8.Record file format:MP4.
9.Support Android/IOS/Windows PC client remote view.
10.Capable of seeing face clearly within 8m in daytime; 10m IR distance at night.
