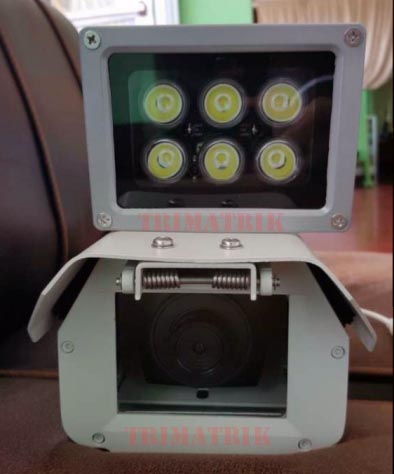

Jovision JVS-N81-ZCP IP Camera

Strong light inhibition, clearly see plate number and car models.
Color Image both day and night.

Jovision IPC Features:
1. Video resolution: 2.0MP.compression standard:H.264/JPEG.
2. Physical WDR function,perfect image under strong light environment.
3. IR cut filter with auto switch for day/night function.
4. Digital 3D DNR,Digital WDR,ROI,Defog,makes image clearer and more fluent.
5. Tri-streams for resolution,frame rate,video quality adjustment.
6. Support IP self-adaption function.
7. Support ONVIF protocol(2.4),compatible with other manufacturers products .

Applicable to the parking lot entrances, village entrances, urban road and places need to record the license plate number.


Camera  Image   Sensor  1/2.7″CMOS
 Resolution  1920×1080
 Pixels  2.0MP
 Compression  H.264/JPEG
 Frame Rate  25fps
¬†Bitrate ¬†353KbpsÔĹě8Mbps
 Synchronization  Internal
 SNR  54.7dB
 Min Illumination  0Lux(white   lights ON)
Lens  Lens   Mount  CS
 Lens  8mm
¬†Viewing Angle ¬†8mm:50.2¬į
 Focus Control  Manual
Function  Exposure   Mode  Auto
 Gain Control  Auto
 White Balance  Auto
 Digital noise reduction  3D   DNR
 OSD  Support
 Network TimeSyn  Support
 QR Code  Support   generate device qr code
 for scanning to add
 Scheduled Restart  Support
 ROI  Support
 IR Sensitivity  Adjustable
 Defog  Support
 Privacy Mask  Support   4 rectangle areas
 Motion Detection  Support
 Video Adjust  Supports   contrast, brightness,
 saturation, sharpness adjustment
¬†Scene ¬†Support ¬† Indoor„ÄĀOutdoor„ÄĀDefault„ÄĀ
 Soft scenes
¬†Day & Night ¬†IR ¬† cut filter with auto switchÔľĆ
 Support Color to Black
 Electronic screen  Supprot   Exposure time setting,
 solve view electronic screen problem
 Night Self-Adaption  Support
 Wide Dynamic Range  Digital   WDR
¬†Image setting ¬†Mirror„ÄĀRotate
 IP Self-Adaption  Support
¬†Alarm ¬†E-mail„ÄĀClient
¬†Remote Operation ¬†System„ÄĀStream„ÄĀUser„ÄĀNetwork ¬† Management
 External Interface  Support   Audio Input
Network  Ethernet  1   RJ45 10M/100M Adaptive Ethernet Interface
 Tri-Stream  Supprot
 System Compatibility  ONVIF   2.4
 Transmission  Internal   Cloudsee Protocol
 Browser  IE8+,Chrome18+,Firefox5.0+,Safari5.02+   browsers
 Connection  32CH
¬†User Permission ¬†Up ¬† to 13 usersÔľĆThree level authorityÔľö
General  Infrared   Lamp  6   white light Lamps
¬†white lights Distance ¬†2mÔĹě15m
 Power Supply  DC   12V
 PoE Power  N/A
¬†Working Temperature ¬†-20‚ĄÉÔĹě+55‚ĄÉ
¬†Working Humidity ¬†10%ÔĹě90%
¬†Power ¬†DayÔľöÔľú3W¬†¬†¬†¬† ¬† NightÔľöÔľú21W
 Material  Aluminum
¬†Size((W√óH√óD)ÔľąmmÔľČ ¬†136√ó376√ó104
¬†WeightÔľągÔľČ ¬†1700g
 Installation  Rack   Mounting
