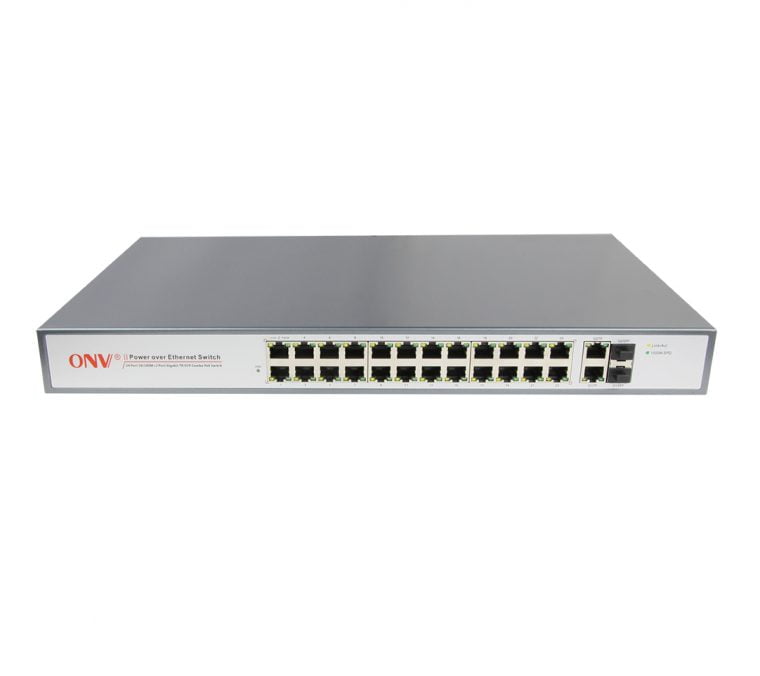

ONV POE-31024PFB 24 Port POE Switch

1. 24 port poe with 24X100M poe ports + 2GE/2 gigabit fiber ports,
2. 24x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX), 2x 10/100/1000M combo ports
3. Supports port auto-flip (Auto MDI/ MDIX)
4. Web management function based on web
5. Provide POE management, VLAN, Link aggregation, Qos, MAC address binding and other intelligent management function
6. Ethernet Port Rate: 24/16 self adaptive 10/100Mbps & 2 self adaptive 10/100/1000Mbps
7. PIN assisgnment: End-span(1/2+,3/6-), Mid-span (4/5+, 7/8-)
8. Working mode: asynchronization, point to point, full/half duplex self-negotiation
9. Ethernet port Transmission Range: 100 meters
10. Two SFP GBIC Slot used for Fiber connection
11. Cable: UTP 5E, Interface: RJ45
12. 19′ Standard cabinet, industrial high reliability

Category: Tag:
Call Us:

0185-3330338, 01711-461346

Office Locations: Uttara | Malibagh

Description

ONV POE-31024PFB Bangladesh

Product Name
PoE Switch with 24 PoE Ports and 2 Gigabit Combo Ports
Product Model
ONV-POE31024PFA
Connector
24x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX)
2x 10/100/1000M combo ports
Transfer Mode
Store-And-Forward
Performance Specifications
Bandwidth: 14.8Gbps (non-blocking)
Network Latency (100 to 100M bps): maximum delay less than 20
microseconds
Packet Buffer Memory: 4M
Forwarding Rate: 6.55Mpps
Address Database Size: 16K
MTBF: 100,000 hours
Network Medium
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 and more UTP(≤100 meter)
Single mode(9/125um) optical transmission, transmission distance:
25km(double optical default, single
Network Protocols
and Standards
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.3af DTE Power via MDI
IEEE 802.3af/at
Rate
10/100M
LED Status
System: power supply Every Port: connecting, PoE working status
Port Protection
Meet the IEC61000-4-2(ESD)±15KV(air), ±8KV (contact);
Compatible with 8/20us,24A(12A)
Dimensions
Dimensions: 440*225*44mm
Working Environment
Operating Temperature: -20 ° ~ 55 ° C
Storage Temperature: -20 ° ~ 75 ° C
Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 10% ~ 95%, non-condensing
Working Altitude: 3000 m (10,000 ft)
Storage Altitude: 3,000 m (10,000 ft)
Certification
CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
Safety
CE Mark ,commercial
CE/LVD EN60950CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
CE Mark ,commercial
CE/LVD EN60950
Warranty
01 year warranty
