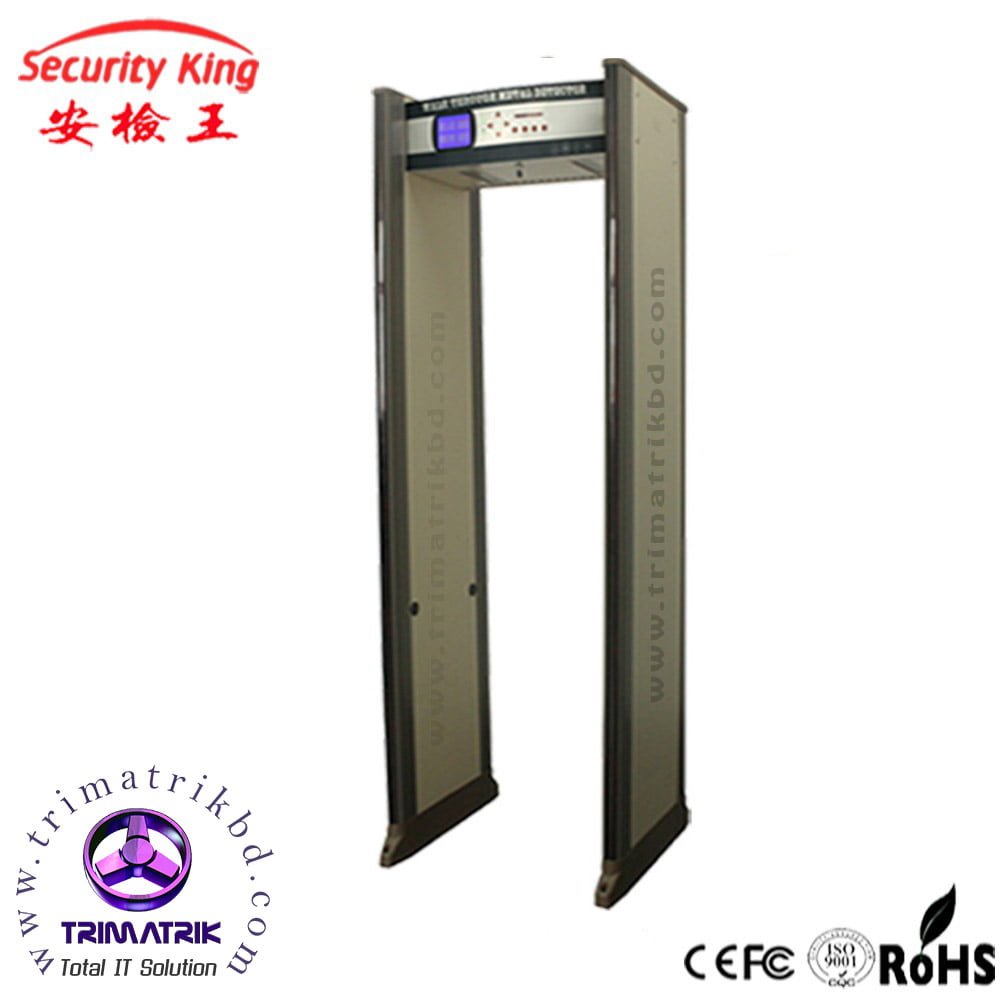

Security King Archway Metal Detector

Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc.
The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all airport installations.
Multi-dimensional coil design (45 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.
Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.
Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.
Durable, IP 55 weather-proof construction.
Can be connected to the PC for the comunication .
With REMOTE
Have the interface for the CCTV, Monitor

Call Us:

0185-3330346, 01711-126895

Office Locations: Uttara | Shantinagar

Security King walk through Archway Metal Detector door
Security King Archway Metal Detector

Security King Archway Metal Detector Bangladesh

· Operating Temperatures
-4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing

· Power
100 or 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets CE standards.

· Weatherproofing / Foreign Object Protection Standards

· Tamper-Proof
All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.

· Construction
Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.

· Control Outputs
Solid state switches (low voltage AC or DC) for operating external alarms and control devices.

· Traffic Counter
Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm.

· Synchronization
Dual channels and DSP circuitry allow several XST-F33’s to operate simultaneously in close proximity to one another.

· Interference Suppression
Special Security King DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.

· Alarms
Audible tone and volume adjustable. Bright LED visual alarm.

· Target Pinpointing Lights
33 distinct zones are displayed with 2 independent columns of LED’s located on exit side of XST-F33.

· Pacing Lights
International symbols

Security King Bangladesh Trimatrikbd
Security King Bangladesh

Technical Parameters

Power Supply

220V/AC  110V/AC

Power

<30V

External Dimension

2200mm(H)*820mm(W)*550mm(D)

Passageway Dimension

2000mm(H)*700mm(W)*550mm(D)

Work environment

-20°C- +45°C

Standard

GB15210-2003<WALK THROUGH METAL DETECTOR>





Standard configuration

Main Case

ONE

Left Probe

ONE

Right Probe

ONE

Power Line

ONE

Screws

Eight

Instruction

ONE (Including one Certificate of Quality & Guarantee Repair List)





Packing

Main Case

0.755m*0.485m*0.255m (Carton)

Probe

2.27m*0.62m*0.19m(Carton)

Total Volume

0.361CBM

G.W.

70kg (Approx.)





  •  Airports and Seaports
  •  Government Buildings
  •  Embassies
  •  Police Facilities
  •  Courthouses
  •  Prisons and jails
  •  Military Bases
  •  Hospitals
  •  Banks
  •  Financial Institutions
  •  Colleges and Schools
  •  Hotels and Casinos
  •  Power plants
  •  Research Sites
  •  Sports Stadiums
  •  Public Transportation
  •  Public Landmarks
  •  Factories and Warehouses
  •  Broadcast Studios
  •  Museums
  •  Night Clubs
