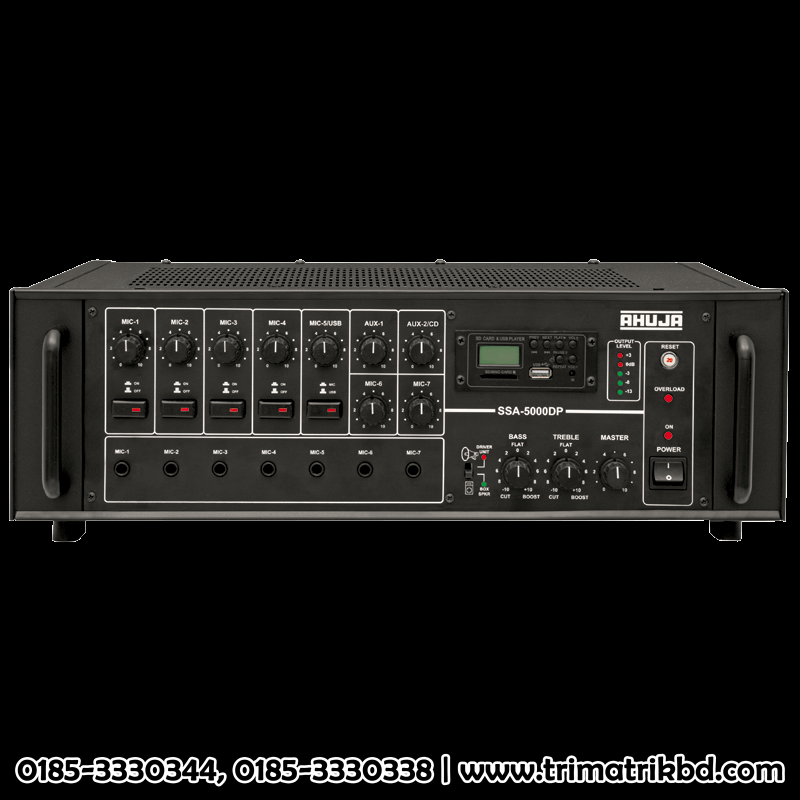

SSA-5000DP 500 WATTS with Built-in Digital Player High Wattage PA Mixer Amplifier

  • 7 Mic & 2 Aux Inputs.
  • Built-in MP3 player with remote control for USB, SD/MMC card reader.
  • Preamplifier and Line Output for connecting to a Booster Amplifier.
  • Line Input for connecting the output from any external mixer or another amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Call Us:

0185-3330338, 01711-461346

Office Locations: Uttara | Malibagh

Description

Power Output750W Max., 500W RMS at 10% THD 450W RMS at 5% THD, 415W RMS at 2% THD
Output Regulation≤ 2 dB, no load to full load at 1kHz
Input Channels7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ,1 × CD 200mV/50 kΩ, 1 × Line 1V/50kΩ
Frequency Response50-15,000Hz ±3dB
Signal to Noise Ratio60dB
Tone ControlsBass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
OutputPreamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output4Ω, 8Ω, 70V & 100V
Digital PlayerMP3 Player with USB, SD and MMC Card Reader
Power SupplyAC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
Power ConsumptionAC: 1000VA DC: 8A
DimensionsW510 × H172 × D385 mm
Weight27.0kg
SSA-5000DP
SSA-5000DP
