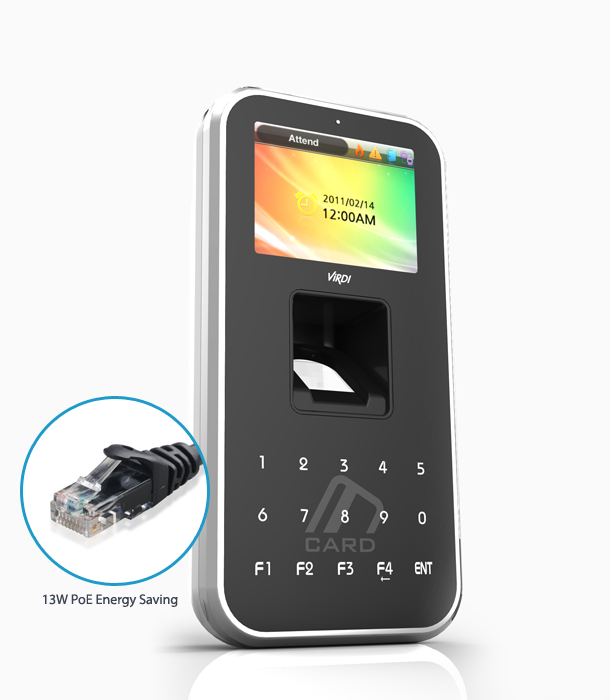

VIRDI AC-5000 PLUS Outdoor IP65 Fingerprint Terminal

৳ 48,500.00

Download Datasheet

An evolution in fingerprint terminal technology,
incorporating state of the art design, elegant looks and
a robust IP65 rated housing.
Call Us:

01785-777722, 0185-3330338

Office Locations: Uttara | Malibagh


Virdi AC-5000 Plus Bangladesh

CPU400 MHz 32 Bit RISC CPU
Template Capacity40 000 templates (20 000 users)
Log Capacity61000 events
Cards Supported125 Khz Proximity (AC-5000RF)
13,56 MHz Smart Card (AC-5000SC)
KeypadTouch Keypad LED backlit
LCD Display(320× 240) 2,8”TFT Color Screen
CommunicationRS-485, RS-232, Wiegand In&Out
Intercom interfaceNo
Supply voltageMax VDC 12V ~ 24V
Operation Environment-20 ~ 50 °C
Fingerprint SensorWhite Optical Sensor
Sensor dimensions15 × 17 mm
Resolution500 DPI
Verification time (1:1)< 0.5 s
Identification time (1:N)< 1 s
FRR / FAR0.1% / 0.0001%
ApplicationAccess Control, Time & Attendance

Virdi AC-5000 Bangladesh


ac5000 3
Virdi AC-5000 Bangladesh
f fakefingerdetectionFake Finger DetectionProprietary optical sensor and algorithm detects fake fingers made of paper, rubber, silicon etc.
f icon01FingerprintThe high-tech fingerprint technology offers both security and convenience.
f WhiteOpticalSensorWhite Optical SensorLarger Scanner Surface, Additional Live & Fake Fingerprint Detection Technology
f icon02Mifare/Proximity CardUsers and Visitors can either be assigned transaction rights based on fingerprint and/or card. These settings are configured by individual.
f icon56StandaloneSupporting stand alone user management without any device.

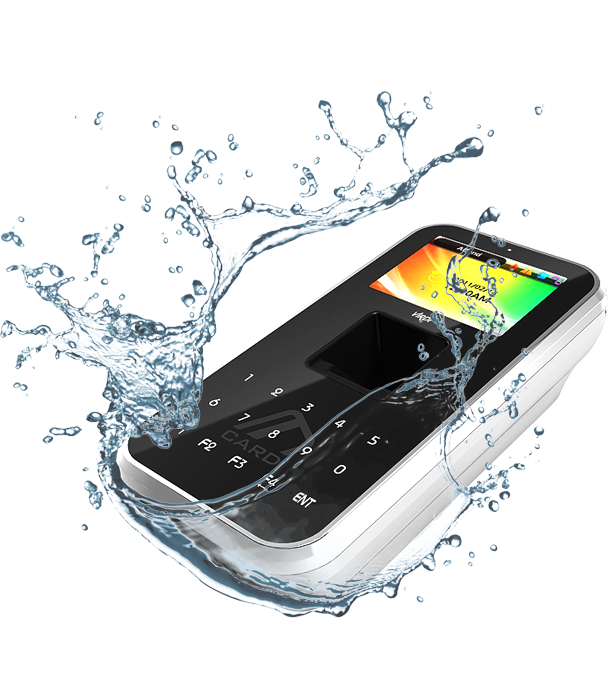

f WaterProofIP65-WaterproofOutdoor installation
f icon04Intelligent CaptureOur internationally renowned fingerprint algorithm authenticates dry or wet fingerprints quickly and accurately.
f PowerfulProcessorPowerfull Procesor1:3,000 users / less than 1 sec
f icon08Auto sensingAutomatically recognizes fingerprints when fingerprints are placed on the scanner.
f icon81Anti-pass back functionAnti-pass back Function
f icon09MultiplayerCan be used in a variety of environments and applications, such as: government offices, manufacturing companies, construction, mining and financial institutions for Access Control, Time & Attendance and Meal Management.
f icon12AuthenticationSupports multiple authentication methods and combinations, such as: fingerprints, RF Card, and/or ID/Password.
f icon14ConfigurationDevice setup can be adjusted for access control, Time and Attendance management, and Cafe management without additional equipments.
f icon15VoiceVoice prompt for device operation and transaction status.
f ColorScreen2,8”TFT Color ScreenUser Customizable LCD Background
f TouchKeypadTouch KeypadLED backlit
