Description

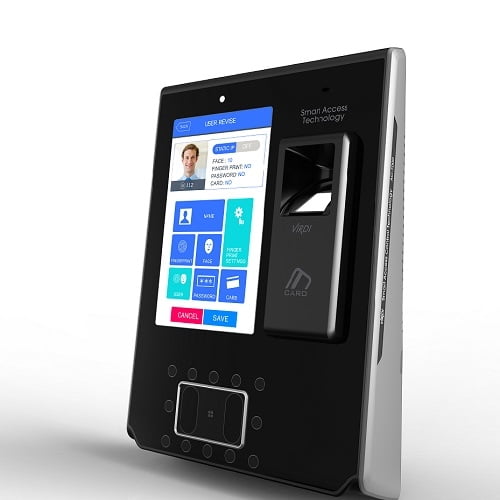

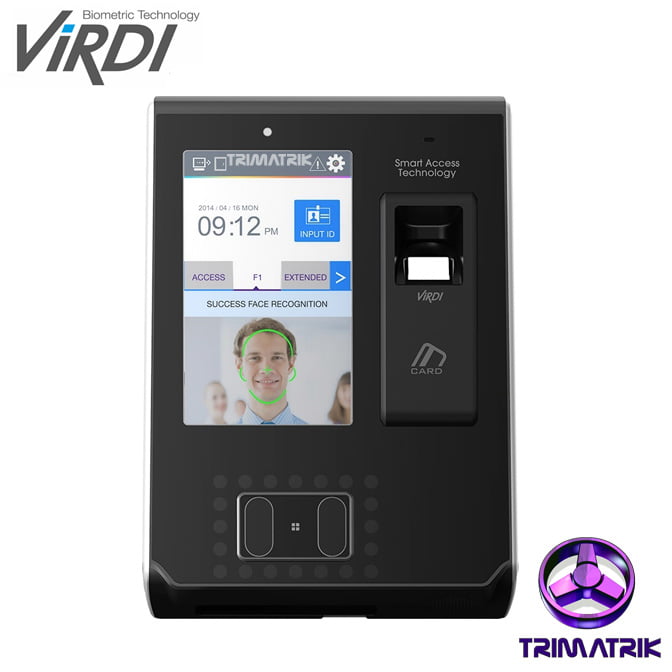

VIRDI AC7000 Bangladesh
Detail Specification AC-7000
| CPU | 1 GHz Quad Core (Dual) | Memory | 4GB NAND + 8GB microSD |
|---|---|---|---|
| LCD | 5” Color Touch LCD | Max Users | Finger 250,000 (1:1) / 25,000 (1:N) Face 10,000 (1:1) / 2,000 (1:N) |
| Power Consumption | 12V, Max 900mA (10.8W) | ||
| Communication | TCP/IP, Wiegand, RS485, RS232, Wi-Fi (Optional) | Log Capacity | 10,000,000(text) / 20,000(image) |
| Dimension | 149.5 x 208.5 x 46 mm | Certificates | KC, CE, FCC, RoHS |
| RFID Card Option | 125KHz EM & 13.56MHz Smart Card / Desfire / Felica / HID Prox(optional) / HID iClass(optional) | ||
| MODEL | AC7000 | |
| Type | Biometric | |
| Ingress Protection | No | |
| Memory | MAX Users (Card) | 250 000 |
| MAX Templates | 250 000 | |
| MAX Users (1:1) | 250 000 | |
| MAX Users (1:N) | 100 000 | |
| Recommended Users (1:N) | 60 000 | |
| FACE Users (1:1) | 60 000 | |
| FACE Users (1:N) | 3 000 | |
| Transaction Log | 2 000 000 | |
| Photo Log | 20 000 | |
| Max Access Groups | 1024 | |
| Max Access Areas | 1024 | |
| Max Access Times | 1024 | |
| Max Time Zone | 1024 | |
| Support Template on Card | Yes | |
| Support Template on Card – Oflline TNA | Yes | |
| Communication | To UNIS | TCP/IP |
| Other | MicroSD | |
| Controller MCP-040 | RS 485 | |
| Wi-Fi | No | |
| To 3rd Party Devices | Wiegand | Yes |
| RS 232 | Yes | |
| RS 485 | Yes | |
| From 3rd Party Devices | Wiegand (26bit, 34bit) | Yes |
| Display | LCD | Colour Touch TFT LCD |
| Size | 5″ | |
| Backlight | N/A | |
| Built-In Camera | Dual Auto Tilt Camera Colour / Mono with IR | |
| Card Reader | RFID, 125KHz – EM 4100 | YES |
| Smart Card | YES | |
| Mifare | YES | |
| DESFire | YES | |
| HID | No | |
| Keypad | Touch | |
| Auto Scan | YES | |
| Door Phone Interface | No | |
| VoIP | No | |
| Function Keys | 60 | |
| Processor | 1GHz Quad Core | |
| Operating System | Android | |
| Memory | 2GB | |
| Sensor Type | Optical | |
| Sensing Area | 20,3 x 20,3mm (PIV) | |
| Resolution | 500dpi | |
| Verification | Finger 1:1 | < 0,5sec |
| Face (1:1) | < 0,5sec | |
| Identification | Finger 1:N (1000) | < 1 sec |
| Face 1:N (1 000) | < 1 sec | |
| Dimension | (W) x (H) x (D) in mm | 149,5 x 208,5 x 46 |
| Support Slave Reader | SR-100FP | No |
| FRR / FAR | 0,1% / 0,0001% | |
