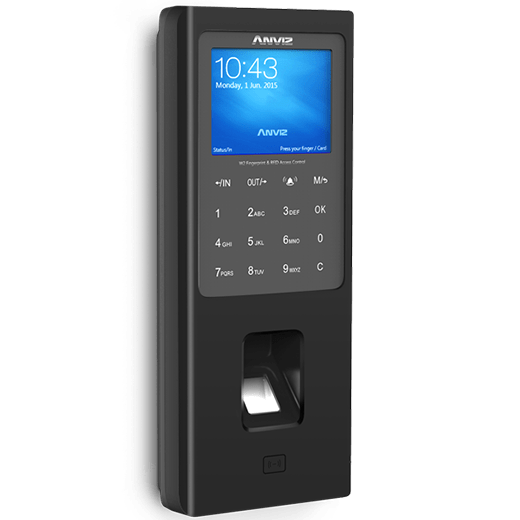

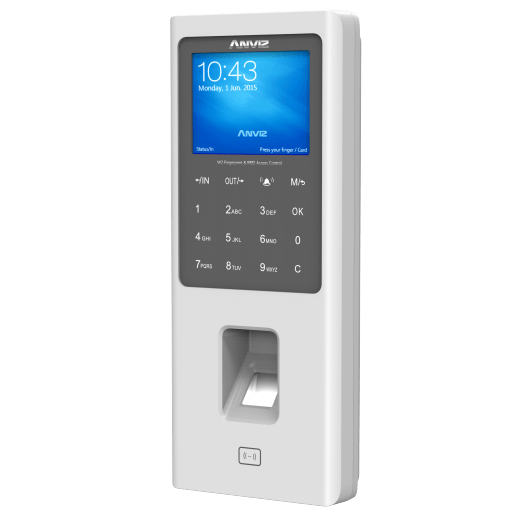

Anviz W2 Color Screen Fingerprint & RFID

Anviz W2 Bangladesh

W2 is the new generation fingerprint access control & time attendance terminal features based on Linux platform. W2 with 2.8-inch color LCD, full capacitive touch keypads and touch optical fingerprint sensor will offer convenient operation experience and improve the practicality of the wet and dry fingerprint. W2 with TCP/IP communication and traditional RS485, Wiegand in/out to provide higher flexibility and multiple communication options for different environments. It also powerful access control interface relay output, door contact and multiple I/O ports can also be expanded with third party access control systems.

• URL
Support dynamic domain name server which offers a persistent domain name for non-static IP devices.

• Webserver
Basic Setting, Personnel Inquiry and Management, Records Inquiry.

• Touch Keypad & Touch Active Sensor
When you reach out your hand to touch the keypad, W2 will be activated automatically and ready for your entering.When you place your finger on fingerprint sensor, sensor will be activated automatically and will awaken the device from sleep.

• Cloud Management Systerm
Support No need to install, maintain, or upgrade software. No expensive computers to purchase or maintain. Access data in real-time from any PC and Mobile with Internet.

• Data Automatic Push
Support TCP/IP network communication, the access control data and events will push to the access control management software by real time. • Time Zone and Group With 32 customize access control time zone and 16 permission groups make access control more easy.

•Time Zone and Group
With 32 customize access control time zone and 16 permission groups make access control more easy.

Category: Tag:
Call Us:

01785-777722, 01711-461346

Office Locations: Uttara | Malibagh

Description

Anviz W2 Bangladesh



ItemDescription
CapacityUserMax 3,000 Users
TemplateMax 3,000 Templates
LogMax 100,000 Logs
InferfaceComm.TCP/IP, Mini USB, USB Host, RS485
Relay1 Relay Output
I/OWiegand input/output, Door Switch, Door Sensor, Tamper Alarm
FeatureIdentification ModeFinger, Password, Card(Optional)
Verification Speed<0.5 Sec
Fingerprint Image DisplayYes
Self-defined StatusYes
WebserverInternal Webserver
RFIDOptional EM/Mifare Card
SoftwareCrosschex Cloud & APP
HardwareCPUIndustrial High Speed CPU
SensorAFOS Optical Sensor (Touch Active Sensor)
Memory512MB
LCD2.8” Color Screen
Dimensions(WxHxD)83.9×204.9x31mm (3.3×8.06×1.22″)
Temperature-25°C to 60°C
PowerDC 12V

Standalone

w2 toph 1

Distributed access control system

w2 toph 2
