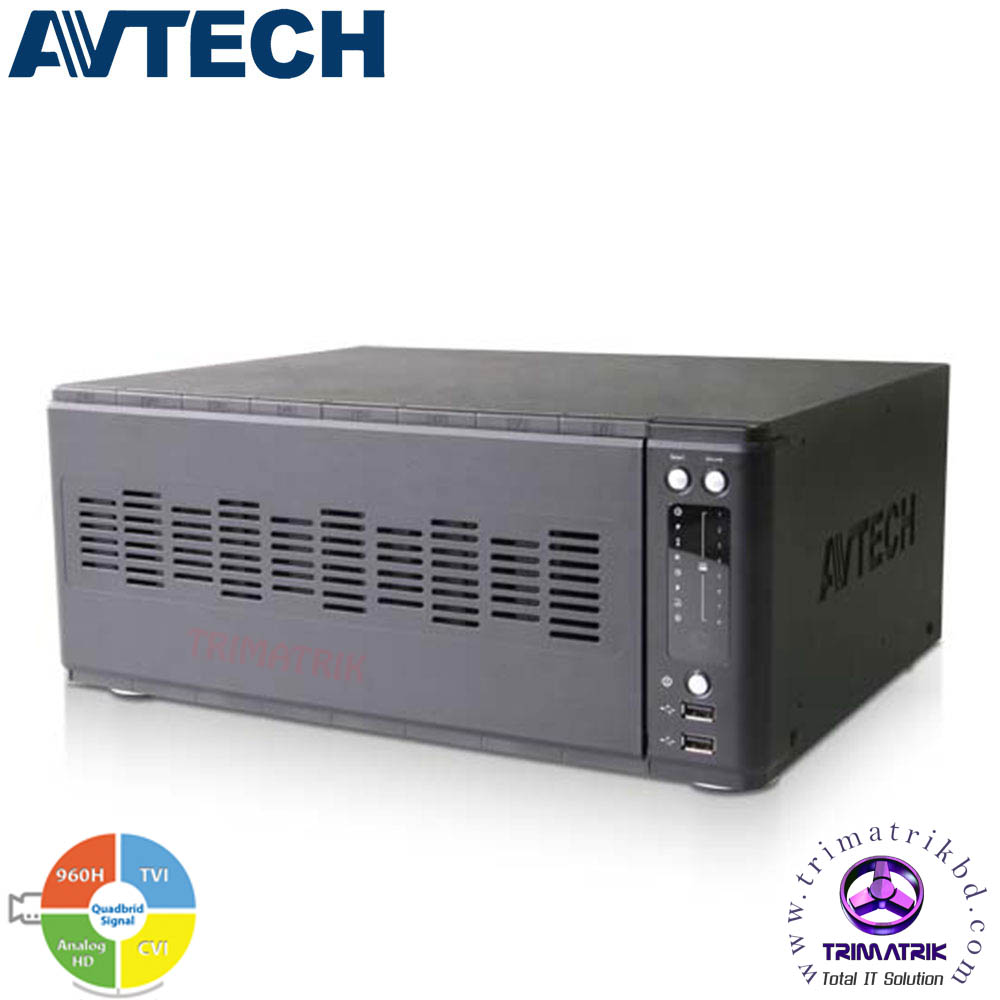

Avtech AVZ8136 36CH 8 Bay Smart XVR / DVR

Type : 36 Pentabrid DVR
Compression : H.264
Video Signal : IP /TVI / CVI / AHD /960H
HDD : 8 SATA 10 TB Each
Online :  Eagle eye/CMS
Origin : Taiwan

Call Us:

01785-777722, 01711-461346

Office Locations: Uttara | Malibagh


Avtech AVZ8136 Bangladesh

The pentabrid HD CCTV XVR accepts IP,TVI, CVI, analog HD and 960H video signals for up to 2MP (IP up to 5MP) live display and video recording. It breaks the boundaries of different video systems and enhance the fl exibility for system integration.

Smart IOT Scenario” is a new feature allowing you to customize a series of actions which will be run automatically after the specified event occurs. There are several scenario templates for you to choose when and what to do after a specific event occurs.

4K2K Long-Time Recording

Customize a Series of ActionsCustomize a Series of Actions“To solve the large storage requirement of recording, this NVR supports up to 8-bay hard disks to keep high quality video data without overwriting data so quickly. A power-saving mechanism is also adopted to reduce power consumption. 8-bay Disk Storage.

Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Signal IP / TVI / CVI / Analog HD / 960H
Video Input 32 quabrid channels (TVI /CVI / Analog HD / 960H) + 4 IP channels
Video Input Interface Analog Mode Composite video signal 1 Vp-p 75Ω BNC
IP Mode Ethernet, 1000 Base-T
Video Output BNC YES
VGA YES (1080P)
HDMI HDMI-1: Up to 3840 x 2160 (4K2K) / HDMI-2: Up to 1920 x 1080 (1080P)
Video Resolution Analog Mode 1080P / 720P / QHD / 960H / Frame / Field / CIF
IP Mode 2592 x 1944** / 2048 x 1536** / 1920 x 1080 / 1280 x 720/ 640 x 480 / 320 x 240

Record & Backup
Max. Recording Rate Analog Mode Up to 480 IPS @ 1920 x 1080 (32 channels)
IP Mode UP to 60 IPS @ 1920 x 1080 (4 channels)
Recording Mode Manual / Timer / Motion / Alarm / Remote
Pre-alarm Recording YES
Playback Channel 16CH
Quick Search Time / Motion / Alarm search mode
Backup Device USB 3.0 drive / Network
Regular Backup YES (USB hard drive or FTP)
Audio Input 16
Audio Output (Mono) 2
 External I/O
Alarm Input 8
Alarm Output 1
Alarm Scenario YES

Hard Disk Storage 6TB SATA HDD x 8
SATA Interface YES
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Event Notification Push Video / Push Status / FTP / E-Mail
Event Pop-up & Preview YES
Picture Zoom 2X digital zoom
PTZ Control YES
IR Remote Control YES (IR receiver built-in)
Key Lock (Password Protection) YES
User Level 4 user levels for different access privilege
Video Loss Detection YES
Camera Title Supports up to 25 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Power Source (±10%) 19V/4.7A
Operating Temperature 10ºC ~ 40ºC (50ºF ~104ºF)
Operating Humidity 10% ~ 85%
Dimensions (mm)*** 358mm(L) x 267mm(W) x 152mm(H)
Net Weight (kg) 5.9 kg
 Network
Ethernet 1000 Base-T. Supports remote control and live view via Ethernet
Network Protocol TCP/IP, PPPOE, DHCP and DDNS
 Remote Surveillance from PC
Compatible Operating System Windows & MAC
Compatible Program Web Browser: Internet Explorer & Safari
CMS Lite: 32CH central management software for Windows OS
Max. online users 20
Web Transmitting Compression Format H.264
Network Live Audio YES
Remote Event Download & Playback YES
 Mobile Surveillance
App EagleEyes
Compatible Devices iOS & Android devices
Push Video YES (9CH)
Push Status YES
 Others
EaZy Networking YES
Spot Monitor Setup Call Monitor / Event Monitor / Live Monitor (HDMI-2 only)
IVA YES (4 channels in analog mode)
DCCS Support YES
AVTECH Free DDNS service YES
Privacy Mask YES
Multiplex Operation Live display / record / playback / backup
