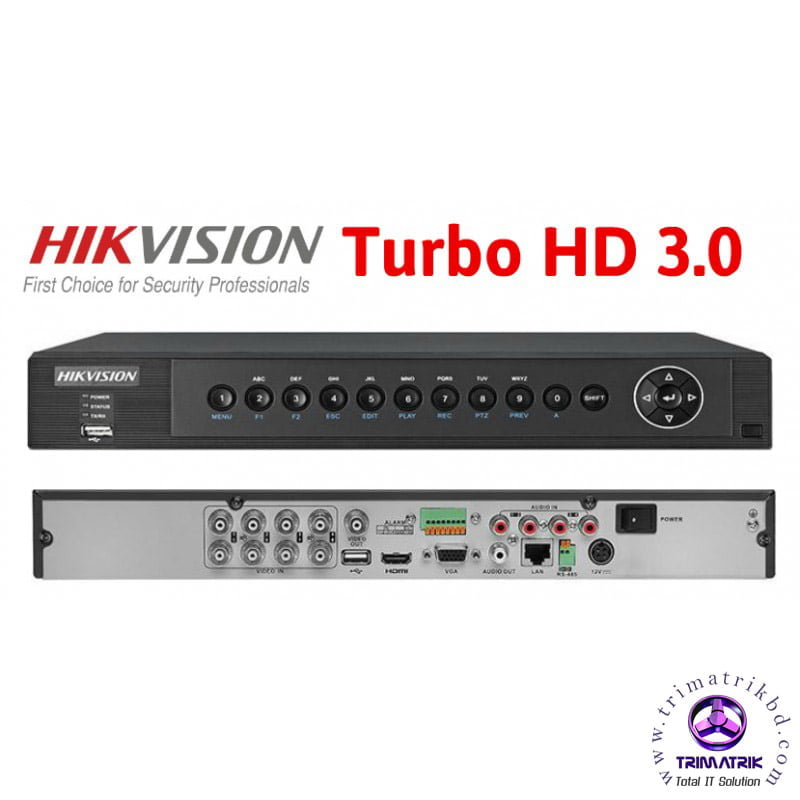

Hikvision DS-7208HUHI-F2/N 8CH Turbo HD DVR

Hikvision DS-7208HUHI-F2/N Bangladesh

• H.264 ,H.264+& Dual-stream video compression
• Support  HD-TVI, IPC,AHD and analog cameras with adaptive access
• Support Cloud storage(One Drive, Google Drive or Drop Box)
• Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7204HUHI-F2/N and 4K (3840 × 2160) resolution for HDMI output of DS-7208/7216HUHI-F2/N

• Long transmission distance over coax cable
• Up  to 4/8-ch synchronous playback at 1080p resolution

• playback at up to 256X speed.

Call Us:

01785-777722, 01711-461346

Office Locations: Uttara | Malibagh

Description

Hikvision DS-7208HUHI-F2/N Bangladesh

Video/Audio Input
Audio Input:|4-ch
Video Compression:|H.264,H.264+
Analog and HD-TVI video input:|8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:|Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input
Video Input Interface:|BNC (1.0 Vp-p, 75Ω)
Audio Compression:|G.711u
Audio Input Interface:|4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:|1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
CVBS Output:|1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI/VGA Output:|HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Recording resolution:|3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:|Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N))
Video Bit Rate:|32 Kbps-10 Mbps
Stream Type:|Video/Video&Audio
Two-way Audio:|1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:|1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:|64kbps
Dual Stream:|Support
Playback Resolution:|3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback:|8-ch
Network management
Remote connections:|128
Network protocols:|TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type:|2 SATA Interfaces
Capacity:|Up to 6 TB capacity for each disk
External Interface
Network Interface:|1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:|1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:|1; standard RS-485 serial interface, half-duplex
Alarm Input:|16-ch
Alarm Output:|4-ch
General
Power Supply:|12V DC
Consumption:|≤ 20W(without hard disks)
Working Temperature:|-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity:|10% ~ 90%
Dimensions:|380 × 320 × 4 8 mm (1 5.0 × 12.6 × 1.9 inch)
Weight:|≤2 kg(4.4lb)
