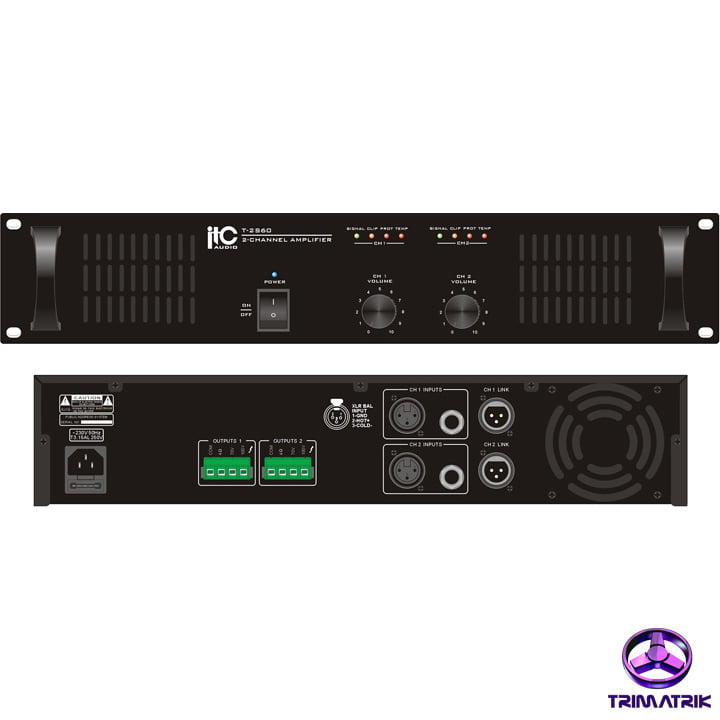

ITC T-2S60 Two Channel Power Amplifier

ITC T-2S60 Bangladesh

  • 2 separate amplifiers built into a single unit
  • 2U rack mount form factor
  • 60W rated power per channel
  • 70V, 100V and 4-16ohm speaker outputs for each channel
  • Isolated transformer for safer and more reliable operation
  • Balanced XLR line inputs and unbalanced 1/4 inch XLR line inputs for each channel
  • Balanced XLR type line outputs for each channel can be fed to an additional power amplifier
  • Reliable protection against overheat, overload, clip & short circuit built-in
  • Front panel indicators for power, signal, clip, protection and temp
  • Built-in heat sinkcooling fan ensures long and reliable operational life
Call Us:

01785-777722, 01711-461346

Office Locations: Uttara | Malibagh


ITC T-2S60 Bangladesh

Rated Power Output2x60W
Speaker Outputs70V, 100V & 4~16Ω
Input Sensitivity & Impedance±385mV/20KΩ, Balanced XLR Input
775mv/10KΩ, Unbalanced TRS Input
Output Sensitivity & Impedance±385mvV/470Ω, Balanced XLR output
775mv/470Ω, Unbalanced TRS output
Overload Electromotive Force>15dB
Frequency Response50Hz~16KHz (+1dB, -3dB)
S/N Ratio>90dB
THDLess than 0.1% at 1KHz, 1/3 rated power
CoolingFan automatically start up when temp reaches 55°C
ProtectionOver heat, over load, clip & short circuit
Power Supply~110V/60Hz or~230V/50Hz or DC 24V
Power Consumption200W
Weight11.3 Kg
FinishBlack aluminium front panel, black steel chassis
