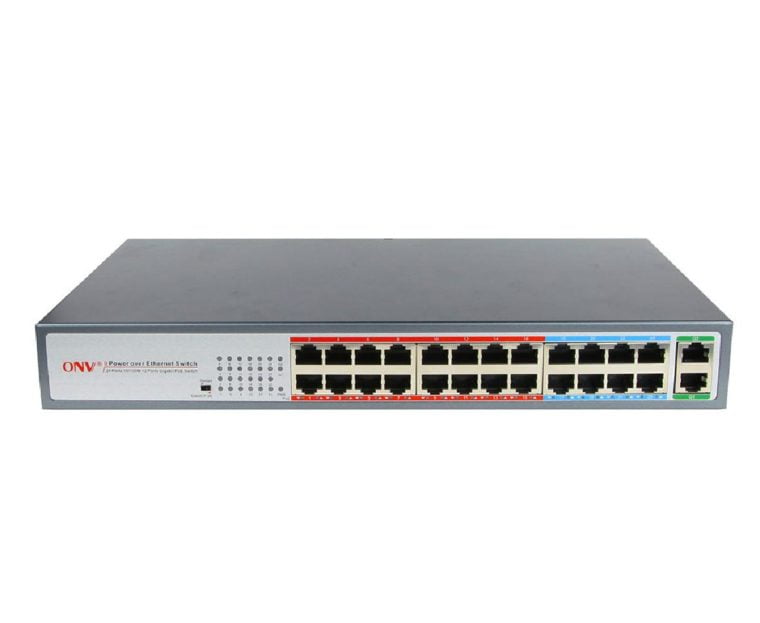

ONV POE-31024PL 24 Port POE Switch

1. 24*10/100M RJ45 port+2*10/100/1000M RJ45 port Unmanaged PoE Switch,1-24 ports compatible with IEEE 802.3af/at ;
2. PoE ports compatible with AF/AT intelligent recognition,Standard power is 15.4W/port,Maximum power: 30W/port; PoE default: 1, 2(+)/3, 6(-) , alternative: 4, 5(+)/7, 8(-); Port 17-24 support 250meters PoE transmission at 10Mbps ; Built-in AC power adapter 250W,compatible with standard 1U rack.
3. Wth VLAN function

Description

ONV POE-31024PL Bangladesh

Inherent port
24*10/100Base-TX POE Ports (Data/Power)
2*10/100/1000Base-TX Uplink RJ45 Ports (Data)
POE Port
port 1-24 support IEEE802.3af/at standard POE power supply
Functional Switch

1*(Extender)After opening, port 17-24 support 10M/250 meter long distance transmission.Note: when the switch state changes, it must be restarted before the switch function can take effect

Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3x
PoE Standard
IEEE802.3af/at
Ethernet Port Feature
10/100 BaseT(X), 10/100/1000 BaseT auto-detection, full/half-duplex MDI/MDI-X auto-sensing
Forwarding Mode
Store and Forward(Full Wire Speed)
Switching Capacity
14.8Gbps (Non-blocking)
MAC Address Table
16K
Buffer Memory
4M
UTP Transceiver
10BASE-TX : Cat5 or later UTP(≤250 meter)
100BASE-TX : Cat5 or later UTP(≤100 meter)
1000BASE-T : Cat5e or later UTP(≤100 meter)
Power Pin Assignment
Default 1/2(+), 3/6(-);Optional 4/5(+), 7/8(-)
Installation Method
desktop type ,wall mounted type,hanging type
MAX / AVERAGE Power Per Port
30W/15.4W
Total PWR / Input Voltage
250W (AC100-240V)
Power Consumption
Standby:<20W;
Full load:<250W
LED
Power indicator light: PWR (green); network indicator: Link/Act (yellow); POE work indicator: POE (green)
Power Supply
Built in
AC:100~240V 50-60Hz 4.1A
Operation TEMP / Humidity
-20~+55°C;5%~90% RH (Non condensing)
Storage TEMP / Humidity
-40~+75°C;5%~95% RH (Non condensing)
Dimension((L*W* H))
330*204*44mm
Net /Gross Weight
<2.3kg / <3kg
Anti-surge/ Protection Level
Anti-surge:4KV 8/20us;
Protection Level:IP30
Certification
3C,CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;ROHS;
Warranty
1 Year (2 Years for Power Supply), lifelong maintenance.
