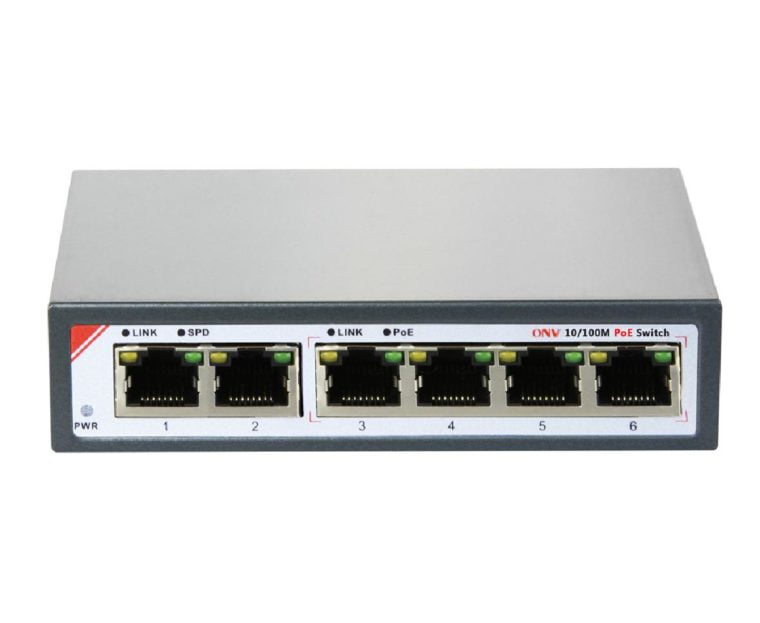

4 Port POE Switch ONV-POE 31064PL

1. 4*10/100M RJ45 port+2*10/100M RJ45 port Unmanaged PoE Switch,3-6 ports compatible with IEEE 802.3af/at ;
2. PoE ports compatible with AF/AT intelligent recognition,Standard power is 15.4W/port,Maximum power: 30W/port;
3. PoE default: 1, 2(+)/3, 6(-) , alternative: 4, 5(+)/7, 8(-);
4. With mounting kis and external power adapter 65W;
5. Wth VLAN function

Description

Product Name
10/100M 6-Port Long Transmission Distance PoE Switch
Product Model
ONV-POE31064PL
Connector
6x 10/100M copper RJ45 Ports (All ports support MDI/MDIX auto sensing) Transmission Distance: 250 Meters @10M, 100 Meters @ 100M
Transfer Mode
Store-And-Forward
Network Medium
10BASE-T: Cat3,4,5 UTP(≤100 meters); 100BASE-TX: Cat5 or later UTP(≤100 meters);
Performance Specification
Bandwidth: 1.2G Frame Size: 1552bytes Buffer Memory: 448K bits MAC Size: 1K MTBF: 100,000hours
Network Protocols and Standards
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af/at
LEDs Status
Power Indicator: Green. Status: Working: ON. Not working: OFF PoE Indicator: Green. Status: Working: ON. Overload: Blink. Not Working: OFF. LINK/ACT Indicator: Yellow. Status: LINK: ON. ACT: Blink. Uplink Port SPD Indicator: Green. Status: 100M: ON.
Power
Total Power: 65 W Max PoE Power for each port:30W (Port3-6) 52VDC, 1.25A Power Output PoE Power Supply:12+,36-
Dimension & Weight
Dimension:118X89X25 mm Weight: 0.26kg
” Working Environment “
Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)
Radiation
CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Safety
CE Mark ,commercial CE/LVD EN60950
Warranty
1 year warranty
