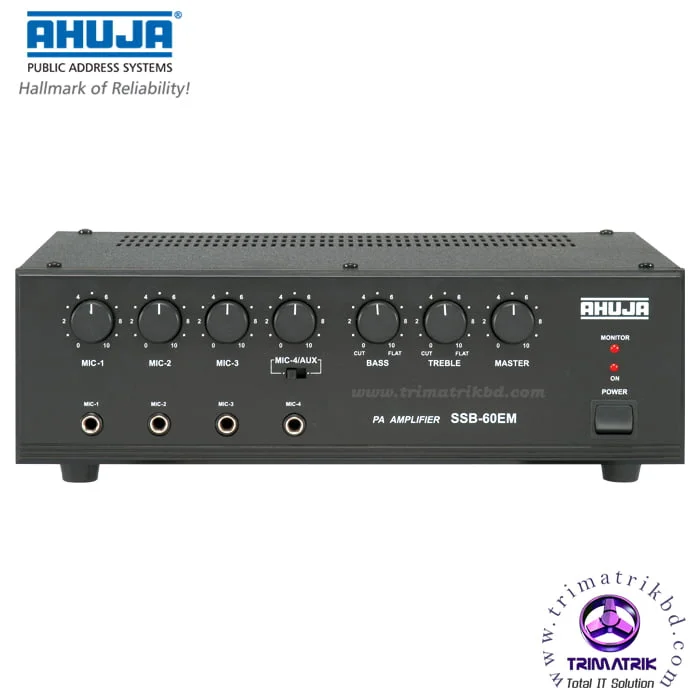

Ahuja SSB-60®EM 60 WATT PA MIXER AMPLIFIERS

60 WATTS

MEDIUM WATTAGE PA MIXER AMPLIFIER

  • 4 Mic & 1 Aux Inputs.
  • Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Cut type Bass & Treble Controls.

Description

Ahuja SSB-60 Bangladesh

Power Output90W Max., 65W RMS at 10% THD, 60W RMS at 5% THD, 50W RMS at 2% THD
Output Regulation≤ 2 dB, no load to full load at 1kHz
Input Channels4 × Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470 kΩ
Frequency Response50-15,000Hz ±3dB
Signal to Noise Ratio60dB
Tone ControlsBass: -10dB at 100Hz, Treble: -10dB at 10kHz,
Speaker Outputs4Ω, 8Ω, 16Ω & 100V
Power SupplyAC: 220-240V 50/60Hz, DC: 12V (12V Car Battery)
Power ConsumptionAC: 160VA DC: 3A
DimensionsW350 × H120 × D265 mm

0010480 SSB 60EM BV
