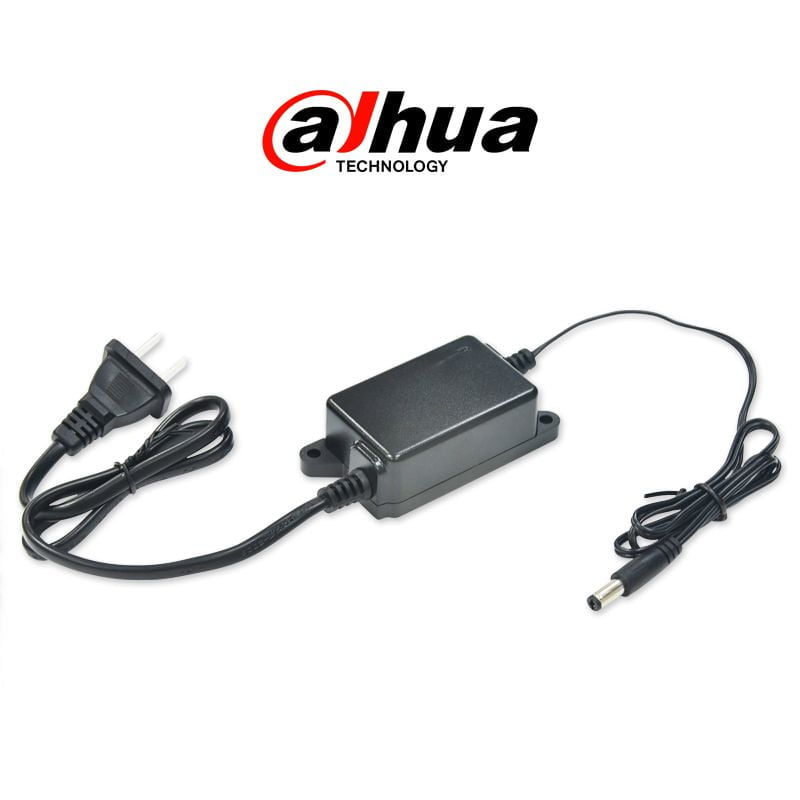

Dahua PFM321 12V 1A DC Power Adapter

> Easy installation
> With indicator light working
> Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
> Accurate overcurrent, overvoltage protection

Call Us:

01785-777722, 0185-3330338

Office Locations: Uttara | Malibagh

Description

Dahua PFM321 Bangladesh

ModelDH-PFM321D-ENDH-PFM321D-BSDH-PFM321D-US (VI)
Electrical Specification
Input100~240V, 50/60Hz, 0.5A
Output12V (+7%, -3%) —1A (2%)
Protection/Environmental
ProtectionSurge protection, over temperature protection,
over current, voltage load protection
ESD: EN61000-4-2
+/-4kV Contact; +/-8kV Air
Surge: EN61000-4-5”
Combination Wave: Common Mode ±4KV (12 ohms);
Differential Mode ±2kV (2 ohms)
Working temperature-30℃~+70℃(-22℉~+158℉)
Working humidity<95% RH
Physical Properties
Weight150g(0.33lb)
Dimension(LxWxH)84mmx41mmx26mm(3.31”x1.61”x1.02”)
Installation modePlane installation
ColorBlack
Input plug2-pin Euro plug3-pin British plug2-pin North American plug
Outgoing cordAC wire: 50cm(19.69”), DC wire: 80cm(31.5”)
DC plugΦ5.5mmxΦ2.1mmx12mm(Φ0.22”xΦ0.08”x0.47mm)
Safety Standards
CertificationCE, FCC, UL-VI

PFM321
