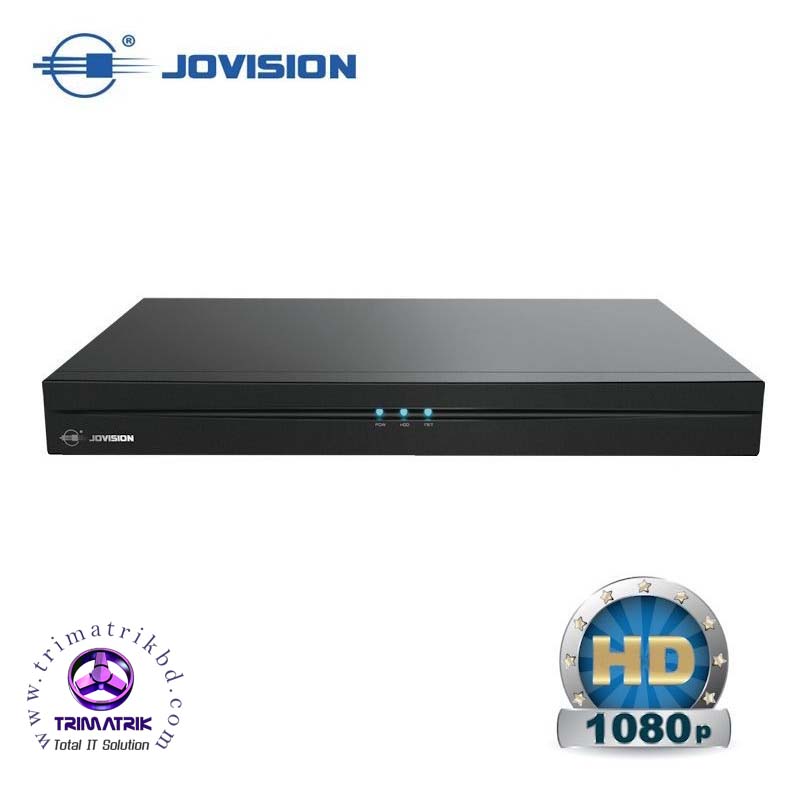

Jovision JVS-ND7716-HA 1080P 16CH HD NVR


Jovision NVR  Features:

1. 16CH 1080P access,4 CH  1080P playback capability ,

2. CloudSEE technology,one-key remote and network plug & play.

3. H.264 Video compression technology.

4. Support ONVIF, compatible with other manufacturers IPC.

5. Support audio compression to achieve real-time video monitoring function.

6. Search and add IPC automatically with zero operation.

7. Network Assistant,one-key IP set function.

8. Support motion detection ,4 privacy areas mask.

9. MP4 record file format.

10. Supports 4 pcs hard disk.


Jovision JVS-ND7716-HA Bangladesh

Input Video Input 16CH 1080P
Output HDMI 1CH,Resolution:1920×1080/60Hz、1440×900/60Hz、
 VGA 1CH,Resolution:1920×1080/60Hz、1440×900/60Hz、   1280×1024/60Hz、1280×800/60Hz、1024×768/60Hz
 Audio   Output 1CH RCA (2.0Vp-p,1kΩ)
Encoding Record 1920×1080/1280×960/1280×720/768×432/704×576
 Video   Encoding 16CH 3MP/2MP/1.3MP/1.0MP or 9CH 4MP or 8ch   5MP
 SyncPlayback 4CH 3MP/2MP/1.3MP/1.0MP or 3CH 4MP or 2CH   5MP
Record Record/Snapshot Manual Record/Snapshot、Scheduled、Motion   Detection Record/Snapshot、Alarm Record/Snapshot、Playback Snapshot
 Playback   Mode Time List & Event Playback
 Backup   Mode Video Backup & Picture Backup
HDD Type 4 pcs SATA Interface
 Capacity up to 6T/pcs
External Audio Intercom 1CH RCA (2.0Vp-p,1kΩ)
 Net   Interface 2 pcs  RJ45 10M/100M/1000M Adaptive Ethernet   Interface
 Serial   Interface 1 RS485 Interface
 USB   Interface 1 USB 2.0 Interface and 1 USB   3.0 Interface
 Alarm In 6CH
 Alarm   Output 1CH
Network Protocol TCP/IP、DHCP、UDP、SMTP、NTP、CloudSEE
General Temperature -10℃~+55℃
 Humidity 10%~90%
 Power   Supply DC 12V
 Power ≤22W
 Language Multi-Languages
 Chassis Standard 1U Chassis
 Size(W×H×D) (mm) 445×45×325
 Weight   (g) ≤3300
