Description

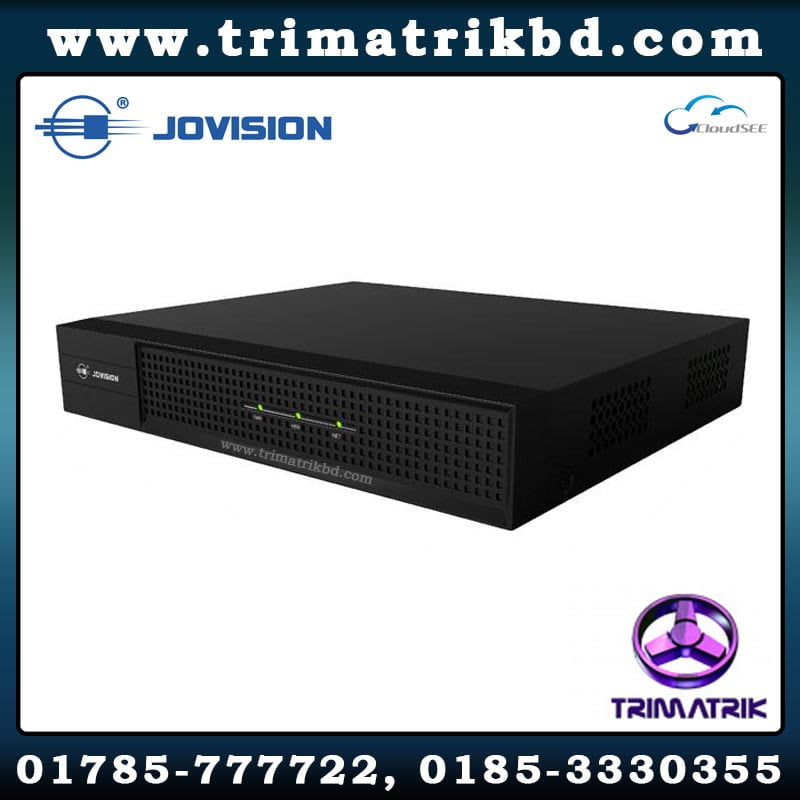

Jovision JVS-ND6704-HA Bangladesh
Video&Audio Input | Video Input | 4 Channel |
Network Video Bandwidth | 20M | |
Video&Audio Output | HDMI/VGA | 1 Channel 1280*1024/1280×800/1024*768 |
Audio Output | 1 Channel, RCA Port | |
Video&Audio codec parameters | Record Resolution | 1920×1080/1280×960/1280×720/768×432/704×576 |
Video Encoding Resolution | 4 ch 1080P/960P/720P | |
Synchronous Playback | 1 ch 1280*1024/1280×800/1024*768 | |
Record Management | Record Type | Manual, Scheduled, Alarm triggered, Motion Detection triggered |
Playback Mode | Time List & Event Playback | |
Backup Mode | Video Backup & Picture Backup | |
Storage | HDD Type | SATA Port |
Quantity of HDD | 1 PCs (supports up to 4TB HDD) | |
External Interface | Two-way talk | 1 Channel, RCA Port |
Network Port | 1 RJ-45, 10M/100M Ethernet Self-adaption | |
PTZ Port | RS485 | |
USB Port | 2 USB2.0 | |
Alarm Input | 4 Group, Total 32 Channels, Alarm Box Input | |
Alarm Output | 4 Group, Total 32 Channels, Alarm Box Input | |
Network | Protocol | TCP/IP,DHCP,UDP,SMTP,NTP,CloudSEE |
General | Work Temperature | -10℃~+55℃ |
Work Humidity | 10%~90% | |
Power | DC12V | |
Watts | ≤15W(without HDD) | |
Language | Chinese / English / Russian / German / French / Italian / Dutch / Korean / Japanese / Thai / Vietnamese / Indonesian / Polish / Spanish / Portuguese / Turkish | |
Chassis | Standard 1U chassis | |
Size(W*H*D)(mm) | 295*45*235 | |
Weight (g) | ≦1200(Without HDD) |
