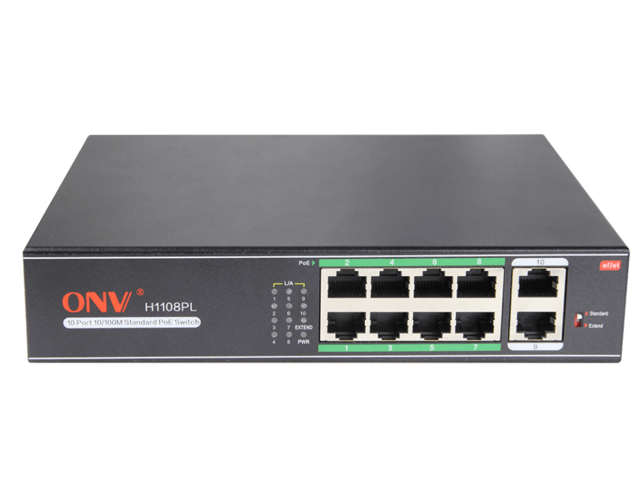

ONV-H1108PL 8 Port POE Switch

1. 8*10/100M RJ45 port+2*10/100M RJ45 port unmanaged PoE switch,1-8 ports support IEEE 802.3af/at
2. PoE port support AF/AT intelligent recognition,Standard power is 15.4W/port,Maximum power:30W/port;total power is 120W
3. With long distance switch,support 250M long distance transmit
4. PoE default 1,2(+)/3,6(-) ,alternative4,5(+)/7,8(-)
5. Built-in power adapter
6. Wth VLAN function
without mounting kits (hanger ear ) can be ordered

Description

ONV-H1108PL Bangladesh

Product Name
10/100M 10-Port Long Transmission Distance PoE Switch
Product Model
ONV-H1108PL
Connector Type
10x 10/100M copper RJ45 Ports (All ports support MDI/MDIX auto sensing)
Port 1-8: PoE port, max PoE power output is 30W. Transmission Distance: 250 Meters @10M, 100 Meters @ 100M
Transfer Mode
Store-And-Forward
Network Medium
10BASE-T: Cat3,4,5 UTP(≤100 meters);
100BASE-TX: Cat5 or later UTP(≤100 meters);
Performance Specification
Bandwidth: 2G
Network Latency (100 to 100Mbps): maximum delay less than 20
microseconds
Buffer Memory: 1.25M
MAC Size: 2K
MTBF: 100,000hours
Network Protocols and Standards
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.3af/at
LEDs Status
System: Power
Every Port: connection status, PoE working status
Switch Mode
Definition
Mode 1: Port 1-10: 10/100M auto-sensing. @100 meters. Mode 2: Port 1-8: 10M @ 250 meters
Port 9-10: 100M @ 100 meters
Power
PWR
L/A
Dimension
195 * 130 * 40mm
Working Environment
Operating Temperature: -20 ° ~ 55 ° C;
Storage Temperature: -20 ° ~ 75 ° C;
Humidity: 10% ~ 90%, non-condensing;
Storage Humidity: 10% ~ 95%, non-condensing;
Working Altitude: 3000 m (10,000 ft);
Storage Altitude: 3,000 m (10,000 ft)
Radiation
CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
Safety
CE Mark ,commercial
CE/LVD EN60950
Warranty
1 year warranty
