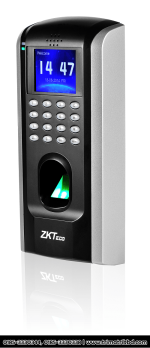

Zkteco SF200

The SF200 is an IP based fingerprint terminal that works in standalone and network modes. The 4*4 keypad and LCD display make it easy to operate in standalone mode. In network mode, it can connect withZKAccess3.5 software for access control and time attendance management.

Wiegand output enables the SF200 to connect with any third party control panel that supports 26 bitwiegand, which allows security suppliers and system integrators to integrate ZKTeco fingerprint identical-tion technology that is accurate, convenient and cost-effective with their current system.

Auxiliary input interface allows SF200 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.

Category:

Description

Zkteco SF200

Parameter

Model SF200
LCD 2-inch TFT (220*176)Color Screen
 Fingerprint Sensor ZK Optical Sensor (500DPI)
Algorithm Version ZKFinger VX10.0
Communication TCP/IP, RS485
Fingerprint Capacity 1,500
Card Capacity 5,000(EM/Mifare)
Records Caption 80,000
Access Control Interface Electric lock, Door sensor , Alarm , Exit button, doorbell
Wiegand Signal Wiegand output(Optional Wiegand input)
Aux Input 1ea for linkage function
Power Supply DC 12V/3A
Operating Humidity 20%~80%
Dimension(W*L*H) 91*188*38mm
